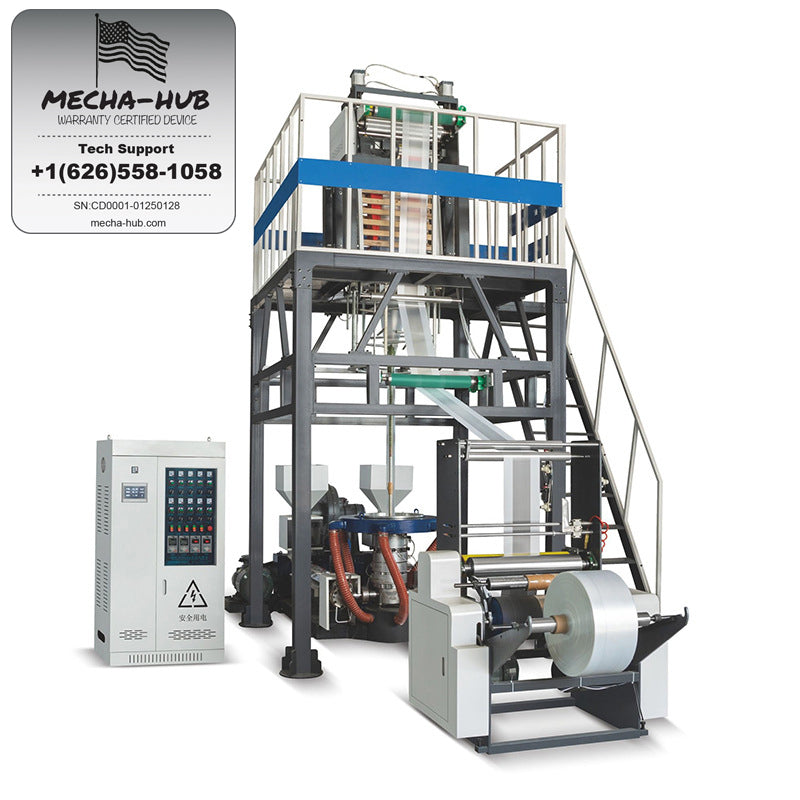

ABA Low-Pressure High-Speed Film Blowing Machine (Renewed & Certified)

ABA Low-Pressure High-Speed Film Blowing Machine (Renewed & Certified)

Our ABA low-pressure high-speed film blowing machines have been fully refurbished and certified for reliable second-life performance. This model is ideal for manufacturing high-quality plastic films using PE, HDPE, LDPE, or LLDPE raw materials.

Key Specifications:

• Film Width: 200–800 mm

• Film Thickness: 0.01–0.10 mm

• Screw Diameter: 45/50 mm

• L/D Ratio: 30:1

• Production Output: 80 kg/h

• Motor Power: 15–18.5 kW

• Machine Weight: 3000 kg

• Overall Dimensions: 4.2 × 3.3 × 4.5 m

Component Highlights:

• Screw & Barrel: GTΦ45×2 alloy steel screws, hardened and nitrided for high durability

• Heating System: Stainless steel heating zones with precise temperature control

• Cooling System: 6 high-efficiency axial cooling fans

• Wind Ring: Dual air outlet ring for film stabilization (adjustable by configuration)

• Extrusion Motors: Dual 18.5 kW 3-phase variable frequency motors

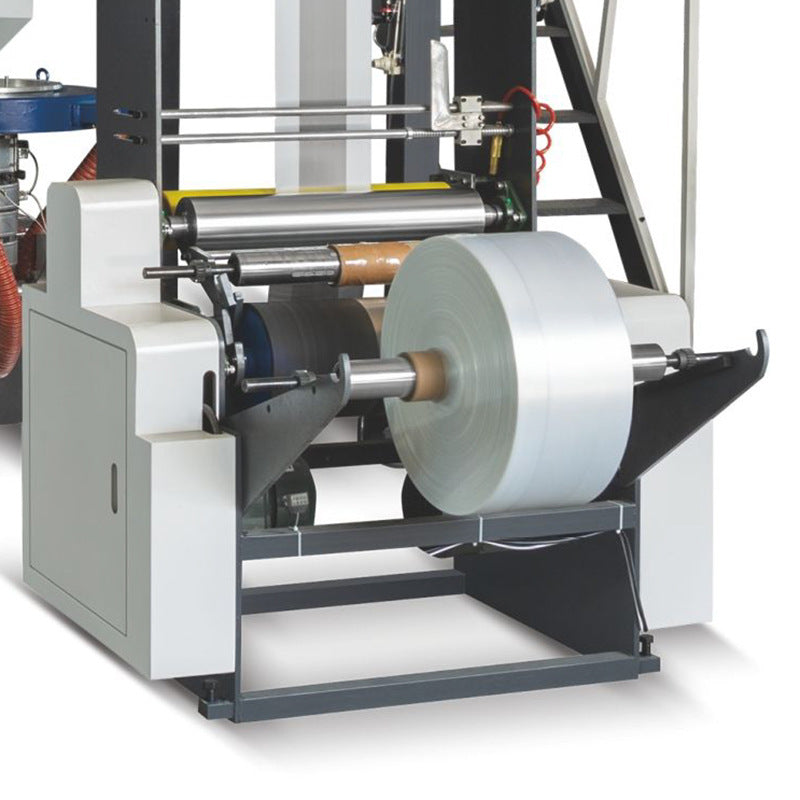

• Winding System: Servo motor-controlled with mechanical shaft

• Blower: 4 kW variable frequency blower

• Die Head: Φ50 mm die (customizable per client needs)

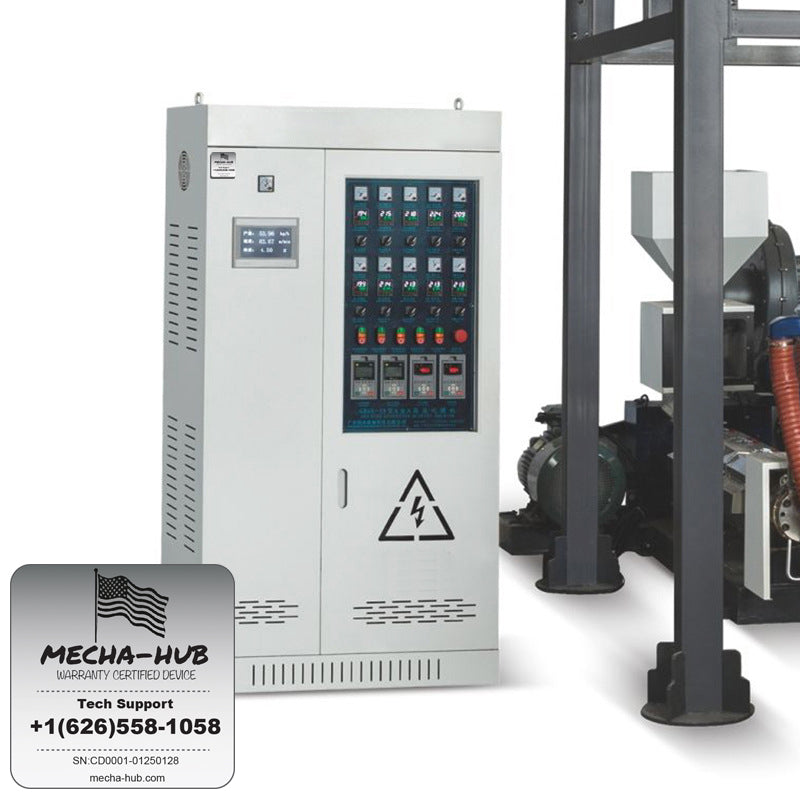

• Control Panel: Smart digital dual-temperature display with PID control

Applications:
This machine is designed for producing various plastic film products, including:

• Trash bags

• T-shirt bags (vest-style bags)

• Packaging films

Its robust construction and precision control system make it suitable for high-speed, continuous production environments. Certified pre-owned by Mecha-Hub, each unit comes with a warranty and verified serial number.
