Automatic Thermoforming Machine（renewed）

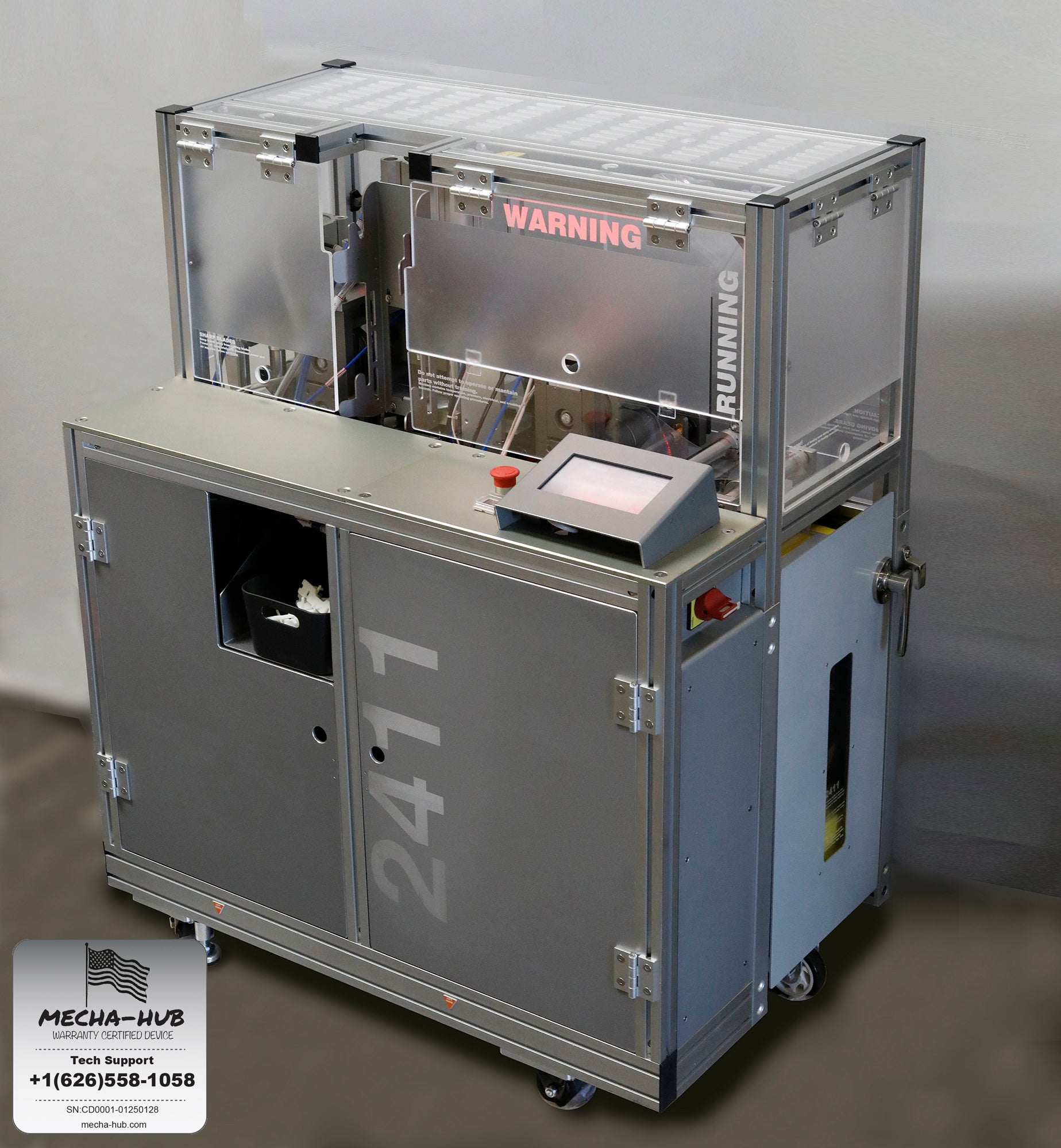

Thermoforming Machine – Model FR 2411 & FR 2411s

Model FR 2411
Feeding Method: Manual mode
Production Capacity: 150 units per hour
Forming Film Roll Diameter (Max): 500 mm
Forming Film Thickness (Max): 1.5 mm
Forming Film Width (Max): 142 mm
Forming Area (Max): 100 × 100 mm
Forming Height Above Film Line (Max): 30 mm
Total Installed Power: 1 kW
Power Supply: 230V (Single Phase) + Ground, 50Hz
Forming Pressure: 7 bars
Machine Size (cm): H = 158, W = 64, L = 67

Model FR 2411s (Upgraded Automatic Version)
Feeding Method: Automatic
Production Capacity: 450 units per hour
Forming Film Roll Diameter (Max): 500 mm
Forming Film Thickness (Max): 3 mm
Forming Film Width (Max): 142 mm
Forming Area (Max): 100 × 100 mm
Forming Height Above Film Line (Max): 30 mm
Total Installed Power: 1 kW
Power Supply: 230V (Single Phase) + Ground, 50Hz
Forming Pressure: 7 bars
Machine Size (cm): H = 158, W = 64, L = 67
