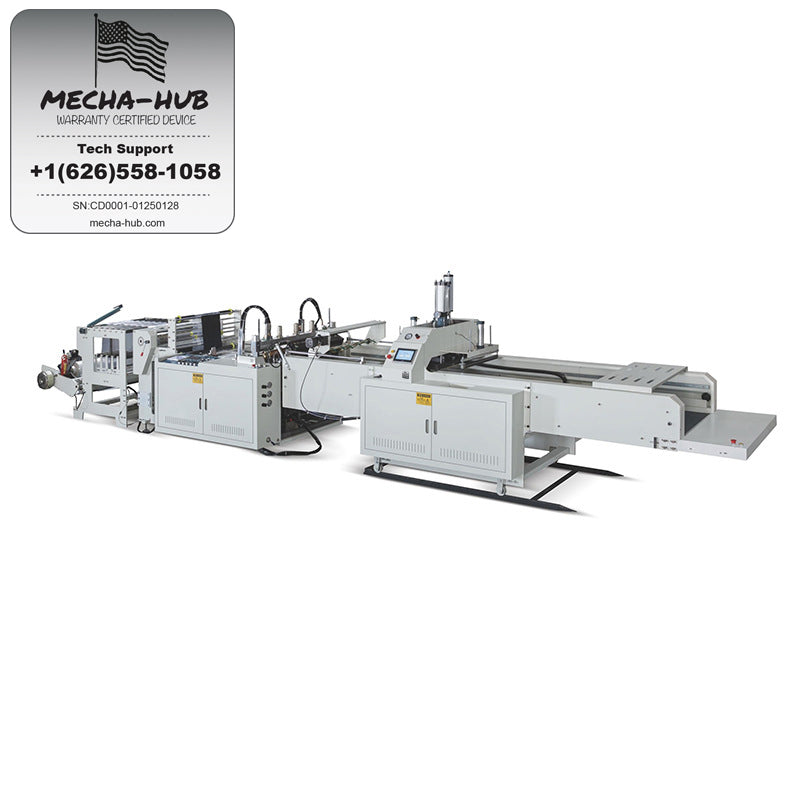

Fully Automatic High-Speed T-Shirt Bag Making Machine

Our fully automatic high-speed T-shirt bag making machine (Model: GR-G700×1) is engineered for high-efficiency production of plastic vest bags. With precision control and advanced automation, this machine is ideal for manufacturers seeking speed, stability, and reliability.

Key Features:

• Production Capacity: 100–400 bags/min

• Bag Size Range: Width up to 650mm, Length 300–1000mm

• Film Thickness: 0.01–0.035mm

• Total Power: 10KW

• Air Pressure Requirement: 0.6–0.8Kg

• Line Speed: 150m/min

• Machine Weight: 3000kg

• Dimensions: 6500mm × 1500mm × 1900mm

Control System:

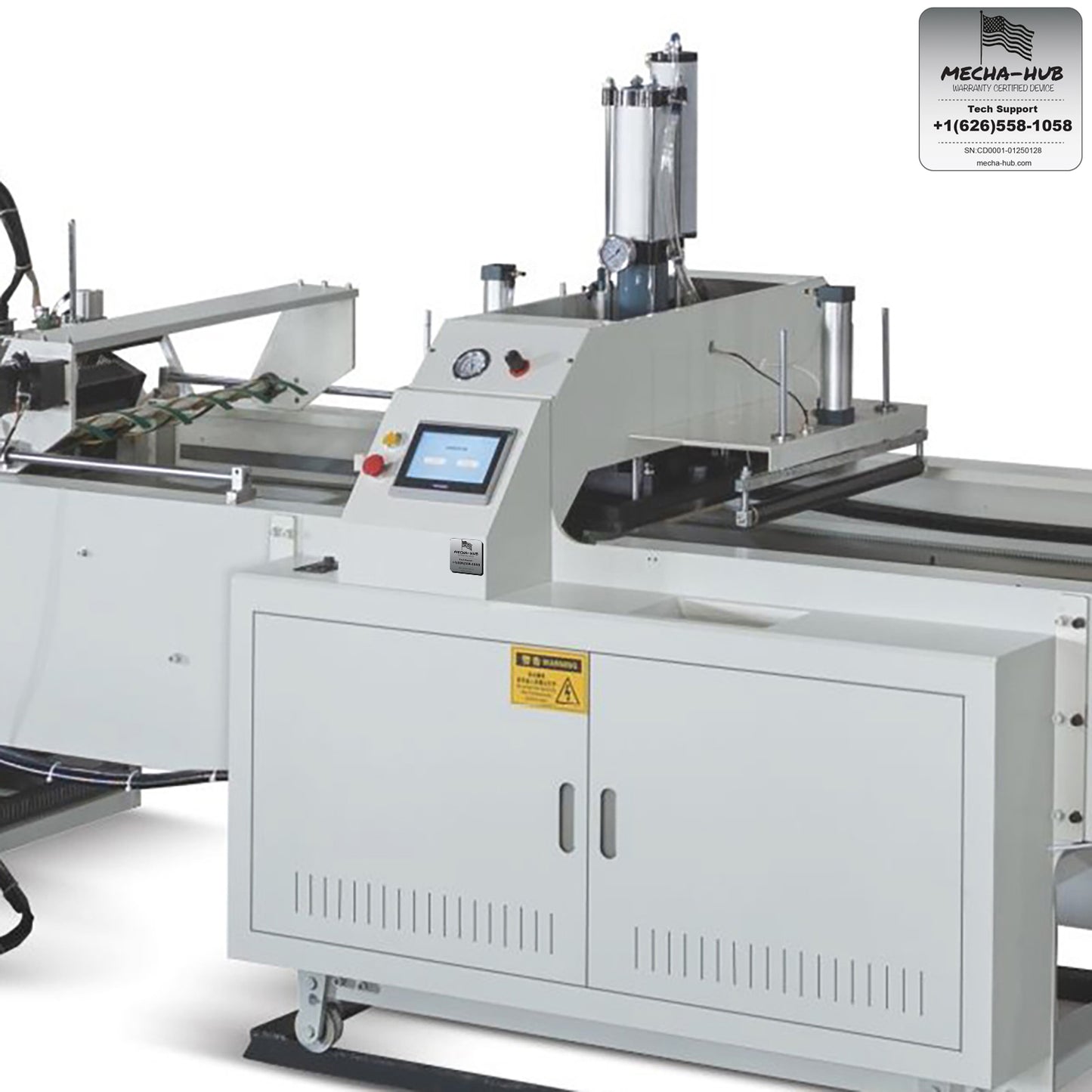

• Equipped with 7" touchscreen and optical sensor from Matsushita

• Servo motor-driven feeding and punching system for precision

• Frequency inverter-controlled main motor (Huichuan brand)

Feeding and Cutting:

• Magnetic powder brake and tension system ensure steady feeding

• Heating method: electric current heating

• Punching system uses solenoid valve and steel frame structure

• Equipped with Taiwan Yatai temperature controller

Main Components:

• Electrical: Huichuan servo motors, PLC, and touchscreen

• Pneumatics: SMC (Japan), Adco, and domestic top brands

• Bearings: Japan NSK or equivalent Chinese brand

• Cutting Blades & Sensors: Matsushita & Songyue (China)

Benefits:

• Dual-lane printing and production capability

• Fast sealing and cutting accuracy

• Compatible with custom bag size requests

• Sturdy steel-frame body for durability and minimal vibration

• Components sourced from globally recognized manufacturers

Whether you need mass production or customized output, this machine meets stringent quality requirements with consistent, stable operation.
