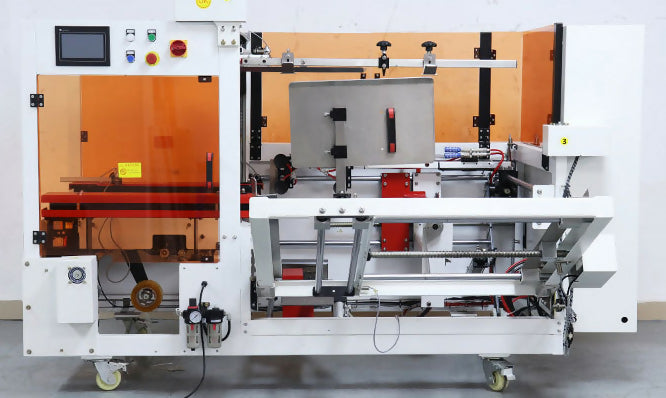

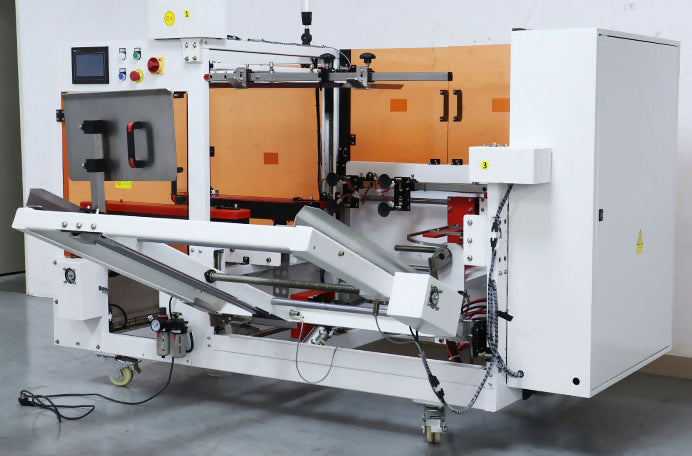

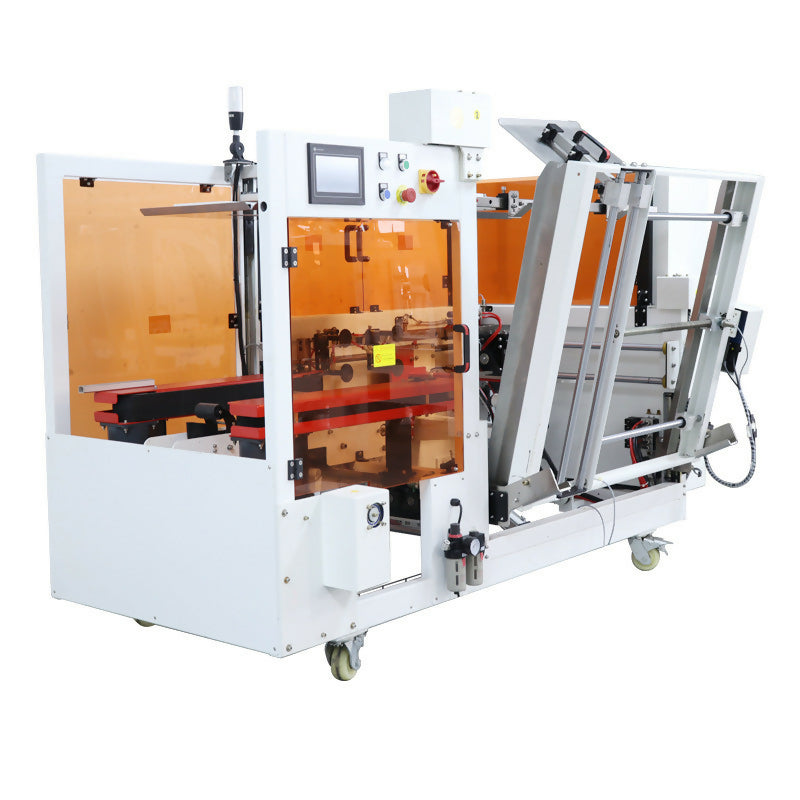

This vertical servo carton erector is designed for e-commerce fulfillment centers, warehouses, and packaging lines. It automatically forms, folds, and seals the bottom of corrugated boxes, significantly improving packaging efficiency and consistency.
Technical Specifications
Model: SCF-405
Power Supply: 220V, 50Hz, 400W
Air Pressure: 6 kg/cm²
Air Consumption: 450 L/min
Machine Dimensions: 2050 × 1950 × 1500 mm
Machine Weight: 400 kg
Applicable Carton Size:
Length: 280–550 mm
Width: 200–400 mm
Height: 200–400 mm
L+W ≤ 1000 mm, 285 < W/2 + H < 620 mm (Carton size must be confirmed)
Tape Width: 48–72 mm
Forming Speed: 8–10 boxes/min (depending on box size)
Efficiency: ≥95%
Forming Type: Vertical carton forming with bottom sealing
Key Components
PLC Controller: LEISAI
Relay & Contactors: Schneider Electric (France)
Push Buttons: Siemens APT
HMI Panel: LEISAI
Air Cylinder: Yadeke (Taiwan)
Servo Motor: LEISAI
Vacuum Generator: AIRTAC
Applications Ideal for warehouses, logistics centers, and online retailers requiring efficient and reliable box forming and sealing.
